Swing VII Pro 3015 - RAM Machinery

The SWING VII PRO 3015 CE series is a low-cost, high-yield, and efficient 2D laser cutting machine.

Model :SWING VII PRO 3015

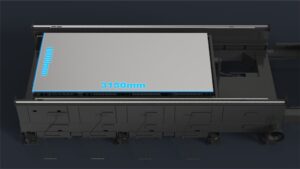

Table Travel :1600×3150mm
Accuracy :0.06mm
Mechanical Repeatability :0.02mm
Rapid Speed :140m/min
Maximum Acceleration :1.5G
Laser Power Option :3000-20000W

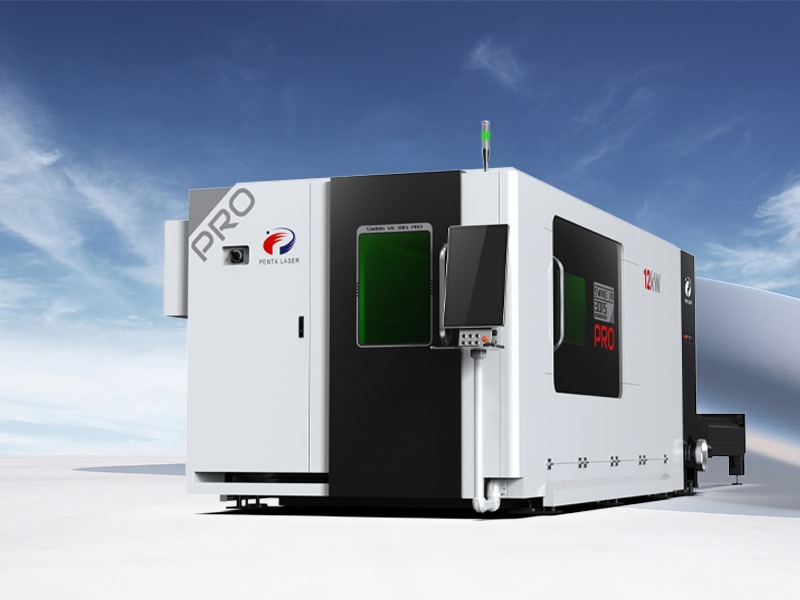

SWING VII PRO 3015 Laser Cutting Machine

The SWING VII PRO 3015 series 2D laser cutting machine is a cost-effective, highly efficient, and high-precision machine. It is a compact model with a small footprint and can fit into standard containers. This model is suitable for industries such as sheet metal processing and mechanical manufacturing. It complies with CE/UL design standards of Europe and the U.S. The cutting area is fully sealed and equipped with a triple safety interlock to ensure the absolute safety of the electromechanical system and the laser.

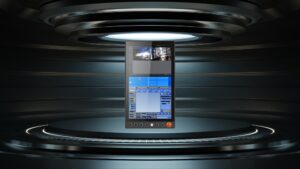

Operation software

■The latest version of Smart Manager is a European-developed CNC software designed for seamless integration with Italian CNC systems. It features an advanced laser cutting database, enabling real-time adjustment of cutting parameters to achieve optimal cutting quality.

■The new algorithm enables faster response.

■The system supports configuration of up to 15 layers of cutting parameters and 25 layers of perforation methods.
