STANDERD
CONFIGURATION

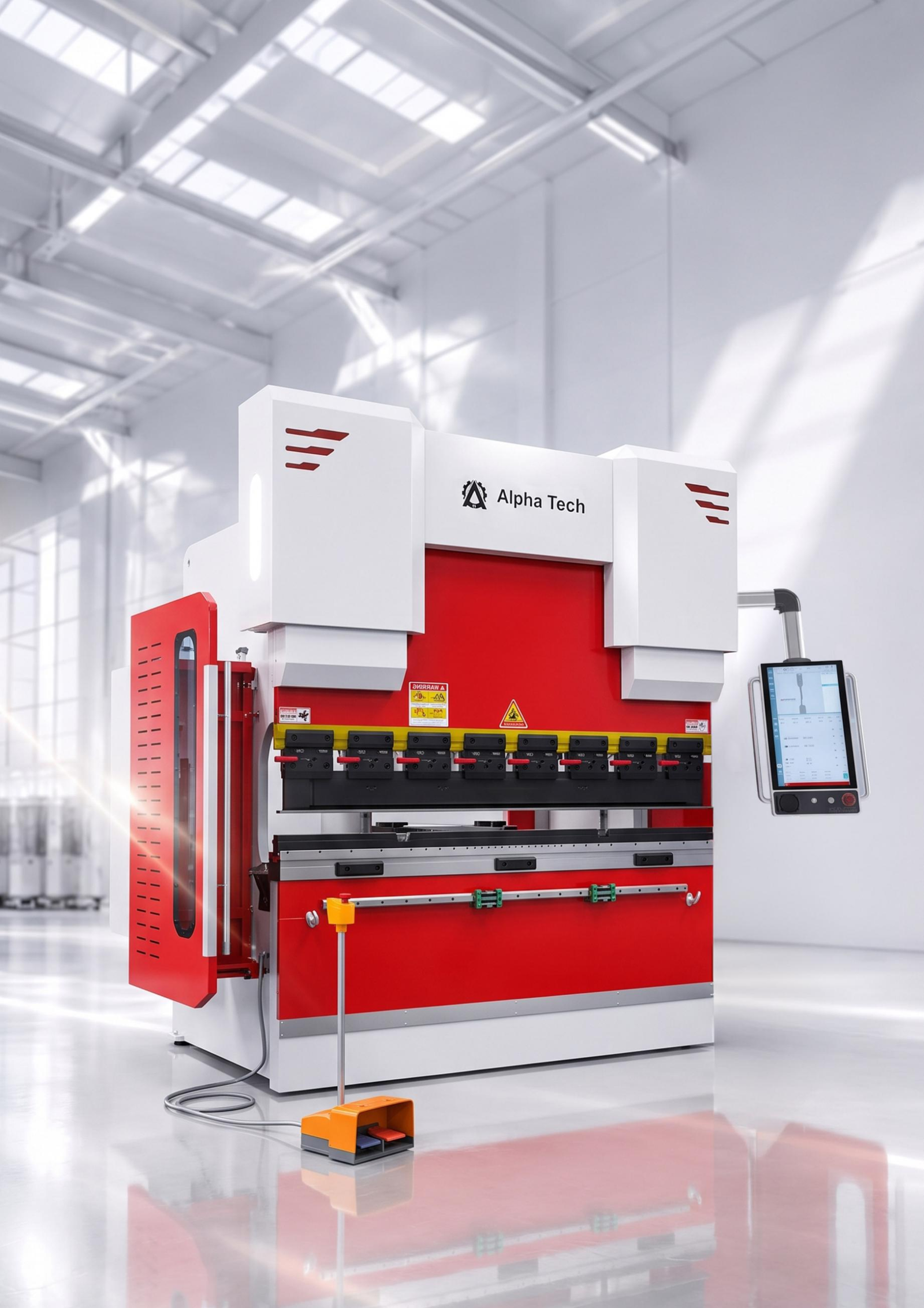

| Machine Model | WE67K-70T1600 |
|---|---|
| System | SCS 920 4 axis |
| Pressure | 700 KN |
| Bending length | 1600 mm |
| Column distance | 950 mm |
| Throat depth | 230 mm |
| Cylinder stroke | 100 mm |
| Max open height | 320 mm |
| Y axis down speed | 150 mm/s |
| Y axis return speed | 120 mm/s |
| Y axis working speed | 10 mm/s |
| Y axis tolerance | ±0.01 mm |
| Back gauge range | 500 mm |
| X axis speed | 300 mm/s |
| R axis speed | 200 mm/s |
| X and R positioning accuracy | ±0.03 mm |
| X and R repeat positioning accuracy | ±0.015 mm |
| Back gauge fingers | 2 pcs |
| Servo motor | 6 KW |
| Dimension | 1800×1200×1820 mm |
| Machine weight | 2500 KG |
