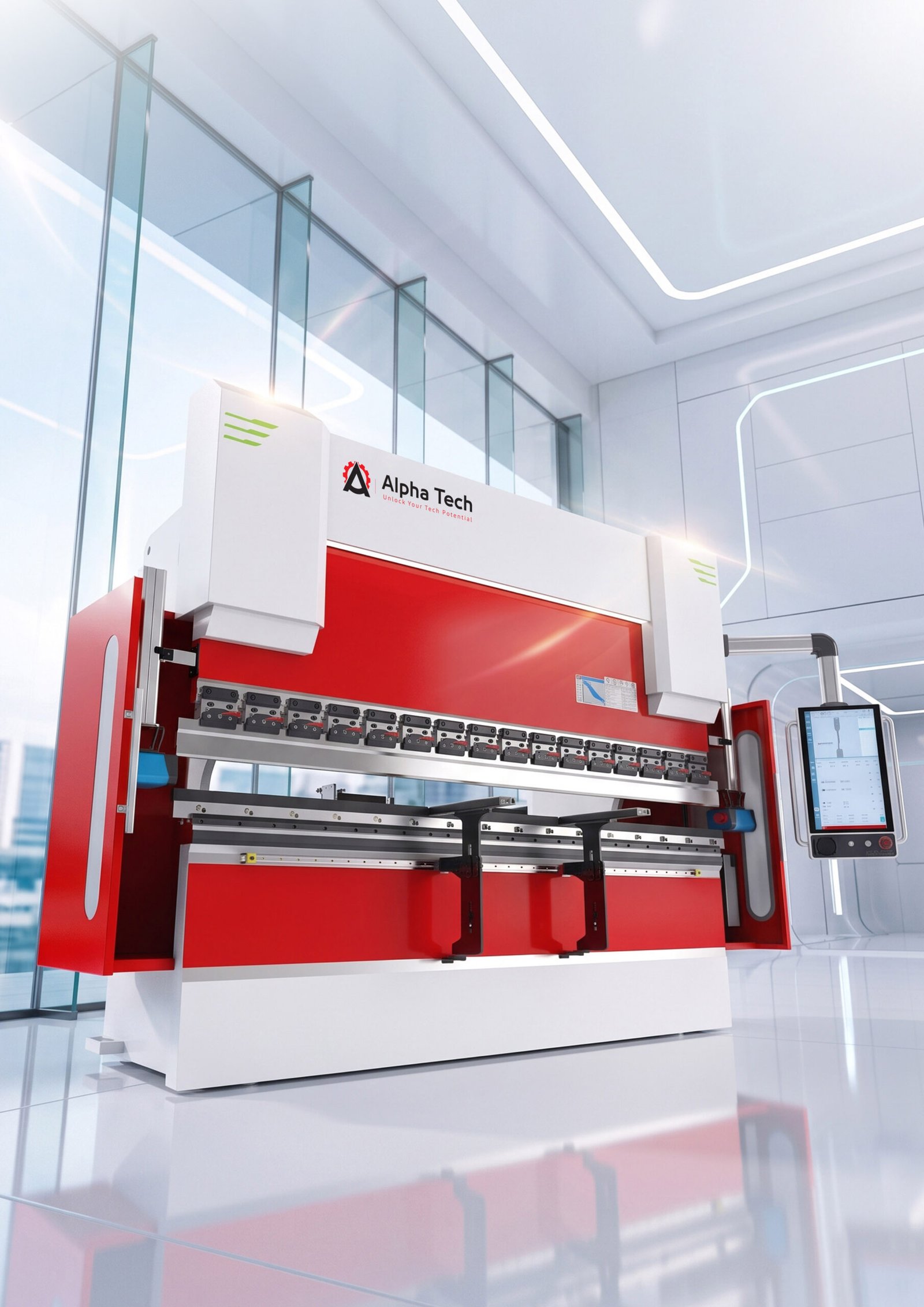

WE67K SCS920 135T/3200

Machine Model	WE67K-135T3200
System	SCS 920 4+1 axis
Pressure	1350 KN
Bending length	3200 mm
Column distance	2600 mm
Throat depth	320 mm
Cylinder stroke	150 mm
Max open height	400 mm
Y axis down speed	150 mm/s
Y axis return speed	120 mm/s
Y axis working speed	10 mm/s
Y axis tolerance	±0.01 mm
Back gauge range	500 mm
X axis speed	300 mm/s
R axis speed	200 mm/s
X and R positioning accuracy	±0.03 mm
X and R repeat positioning accuracy	±0.015 mm
Back gauge fingers	2 pcs
Servo motor	11 KW
Dimension	3200×1600×2600 mm
Machine weight	7500 KG
